Automatically Detecting Serial Baud Rate

As discussed on the prior page, the transmitter and receiver each needs to be within 2% of the agreed bps/baud rate to ensure accurate serial communication. Usually this means pre-programming or configuring the rate in both devices, and using either an individually compensated oscillator or a crystal.

In April 1989, Eddy Carroll published a method where the receiver could configure the baud rate based on the transmitter. The basic algorithm is for the receiver to start at a specific rate (9600), for the transmitter to transmit a known character (carriage return), and then for the receiver to adjust its rate based on what character it actually receives.

For example, if the carriage return is received correctly, then both the transmitter and receiver are at 9600 bps. However, if the receiver sees a lowercase 'x' character, then the receiver knows that the transmitter is at 2400 bps. Eddy logically worked out a list of predetermined values that would be received for the major bit rates.

Unfortunately, the problem that I encounter most often is not a major baud mismatch, but instead a slightly inaccurate oscillator built into the microcontroller. That is, to save on expense, board space, and to free up a couple of pins, I tend to use the microcontroller’s built-in clock rather than a highly accurate external crystal. So, rather than only a 0.2% error for an 8 MHz clock at 38400 bps (result of around 38232), the microcontroller outputs something more like 37654 bps because the clock is actually 8.122802 MHz.

There are multiple ways of adjusting serial timing, but in any case I need to pull out my logic analyzer and measure the width of the start bit to know how much of an adjustment needs to be made. I’d rather have a tool to calculate it for me. So, I made one.

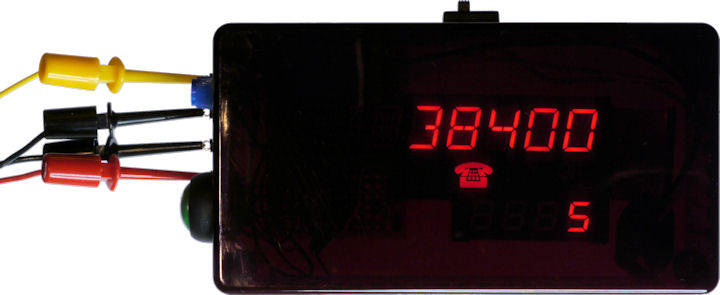

Serial bit rate detector project

Serial bit rate detector project

The project box is a red Hammond Manufacturing 1591C enclosure obtained from All Electronics (CAT# 1591-CTRD). The LED display is the Lite-On LTM-Y2K19JF-03.

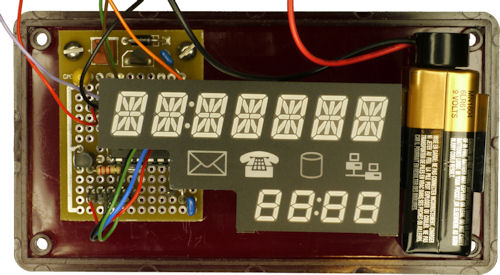

Inside the serial bit rate detector

Inside the serial bit rate detector

The tool can supply its own power from the internal 9 volt battery, can optionally output 5 V to the project being tested, or can be supplied power from the project being tested. I had hoped to use this tool with voltages from 2.7 V to 5.5 V; however the display becomes too dim to read at 3.5 V.

The circuit itself is simple:

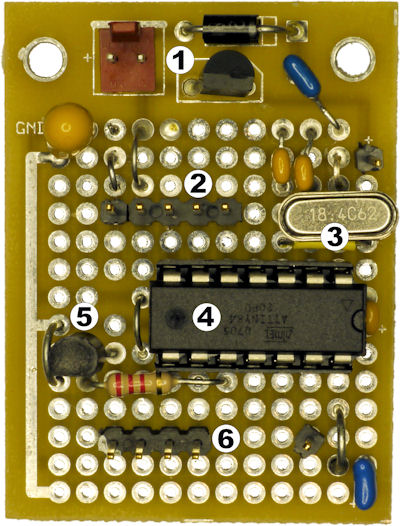

Circuit board with prototype area

Circuit board with prototype area

① MCP1702-5002E voltage regulator can supply up to 250 mA at 5 V from up to a 13.2 V source. It uses very little current and has a low dropout voltage. It was chosen primarily because it is small and can supply power from a 9 V battery. A 78L05 in the same package tops out at 100 mA. The LED display needs around 200 mA.

② Header for 5 V, ground, potentiometer analog input, timer capture (serial input), and button digital input. This connects to the controls and all but one hook point on the enclosure. The timer capture pin is the most interesting, as it measures the length of the bits being transmitted by the project being tested.

③ Crystal at 18.432 MHz. This was chosen to provide very accurate measurement, to precisely match most baud rates, and to be as fast as possible so that high baud rates can be measured. (I upgraded to a 22.1184 MHz crystal on my next Mouser or DigiKey order, even though that clock speed is faster than the chip is officially spec’d. This works because I’m not using the microcontroller’s eeprom, and it is being run at room temperature and a full 5 V. Microcontroller manufacturers derate the maximum speed to be sure the microcontroller runs under more difficult conditions.)

④ Atmel AVR ATtiny84 8-bit microcontroller. This board was created years before envisioning this tool, using leftover room on a PCB. The 14-pin DIP ATtiny84 fits nicely in the space available. As you can see, other than the microcontroller and voltage regulator, the remainder of the circuit was built into the prototyping area (sea of holes).

⑤ PNP transistor for turning power on and off to the display. Being an LED display as opposed to an LCD display, the light emitting diodes use a lot of energy for a battery-powered project. If inadvertently left idle, the tool can turn off the display to save power.

⑥ Header for 5 V, ground, clock, and data for the display.

UPDATE: I have since designed a clean printed circuit board for this project, which you can download for free.

Hookup and Usage

To measure the serial bit rate (same as baud rate for this tool), simply connect the ground wire of the tool and target project together. Then, connect the input capture pin of the tool to the serial TX (transmit output) pin of the target project. You can still connect the target project to the computer’s serial port at the same time, if desired. The tool is just “listening” to the conversation.

That’s it.

The tool displays the exact bit rate of whatever the target project transmits. Pressing the “clear” button causes the tool to start sampling over again, in case you want to tweak the target project’s serial rate on the fly.

Next we'll take a closer look at the timer capture capability of the microcontroller, as well as the relevant source code.
