Replacing the Panasonic 4602M Infrared Detector

The Panasonic PNA4602M is discontinued and is difficult to buy. Fortunately, the Vishay TSOP4038 is a compatible (if not a superior) drop-in replacement. (Update: The TSOP4038 is now replaced by TSSP4038). Both modules are three-pin through-hole components that detect continuous infrared signals modulated at 38 kilohertz.

The PNA4602 was popular in robotics for obstacle detection and navigation. I’ve used it for mini-sumo (Bugdozer, Have A Nice Day, No.2) and room exploration (Roundabout). Officially, the intended purpose of the PNA4602 is as a remote control receiver demodulator (Streamhawk, Jet).

In fact, I relied on that sensor so much that I was despondent when I discovered the PNA4602M was listed as obsolete. At first, it seems like there are lots of comparable sensors that can be substituted, but it turns out they only accept bursts of signals instead of a constant 38 kHz emission. This is acceptable to many electronic projects controlled by a microcontroller, as they can turn on the signal, read the detector output, and then turn off the signal. Unfortunately, simpler circuits with a 7400 NAND oscillator or 555 oscillator are difficult to add intelligent quiet periods to. Thus, most infrared detector modules are incompatible for continuous object detection.

Fortunately, you can swap the TSOP4038 for the PNA4602M in almost all situations. The Vishay TSOP4038 can be purchased at Mouser Electronics (782-TSOP4038 $0.70).

Comparing PNA 4602 to TSOP 4038

Both infrared detector modules have a similar package, with the TSOP4038 case being 33% smaller.

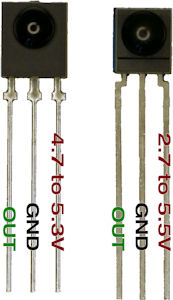

Panasonic PNA4602M and Vishay TSOP4038 pinouts

Panasonic PNA4602M and Vishay TSOP4038 pinouts

The pinouts are identical, although the TSOP4038 allows a much wider voltage range of 2.7 V to 5.5 V. The TSOP4038 also uses less current (typical 0.85 mA versus 2.4 mA). Both sensors provide low (0V) on the output pin when an infrared signal is detected, and high (5V) when the signal is not detected. [Thanks to Eric Ostendorff for the correction.]

Detection Range

The Panasonic PNA4602M has a reception half-angle (50%) of about 37 degrees, compared to 45 degrees for the Vishay TSOP4038. This might be a substitution incompatibility for projects with a narrow opening or detection corridor.

Based on my experiments, the TSOP4038 has a better detection range, which is usually beneficial. If this causes you an issue, simply decrease your infrared emitter output.

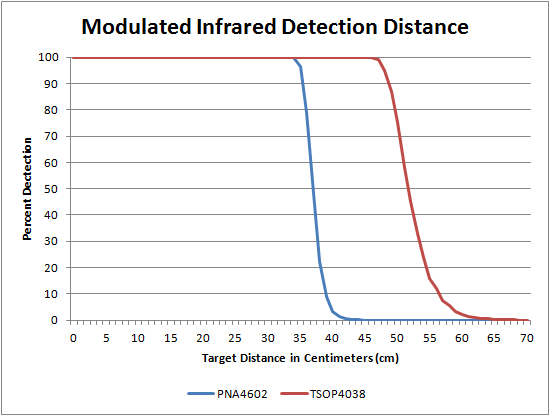

Detection distance for the PNA4602M versus the TSOP4038

Detection distance for the PNA4602M versus the TSOP4038 with emitter at 2 mA

Some details behind the graph:

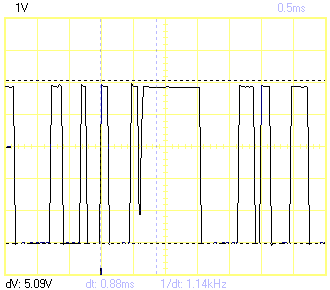

As you might expect, between 100% and 0% the output isn’t a simple fixed-frequency wave with varying duty cycle. Instead, it looks like this:

PNA4602 approximately 50 percent detection

PNA4602 approximately 50 percent detection

You can imagine the detector is saying “I see something. No, wait, I don’t. Yup, there it is. Lost it again.”

During normal operating conditions, you'll need to come up with a circuit or algorithm that can handle the fluctuating region from 99% to 1%. As it turns out, there are a few other details about the output that is worth understanding. See the next page.

Aside: For this article, I also tested the Vishay TSOP58038. It is an infrared detector with very similar specifications to the TSOP4038. For some unknown reason, none of the parts I tested seemed to work. They gave seemingly random output regardless of the target distance when a 38 kHz wave was being emitted. So, I can’t recommend the TSOP58038 at this time.
